Current Fitment Reference
POLE DOC fitment examples are organized by setup type below. Common reference setups include Ford, Chevy, and Ram trucks with a downward-facing bed rail lip, as well as Tacoma, Tundra, and similar factory bed rail systems. Please compare your truck bed setup to the examples shown and submit clear photos for review.
Please include:

1. A side view of the bed rail or rail system
2. A photo underneath the bed rail or inside the rail channel
3. A close-up showing the mounting area and available clearance

Fitment and compatibility are reviewed from submitted photos before confirmation. Standard fitment reference language for POLE DOC has centered on Tacoma and Tundra factory rails, plus Ford, Chevy, and Ram setups with a downward bed rail lip.

---

POLE DOC™ Fitment Photo Guide

POLE DOC Bed Rail Fitment Types

Downward Bed Rail Lip and Rail System Setup

---

​Downward Bed Rail Lip Fitment Examples
For Chevy, Ford, Ram, and similar truck beds with a downward-facing bed rail lip.

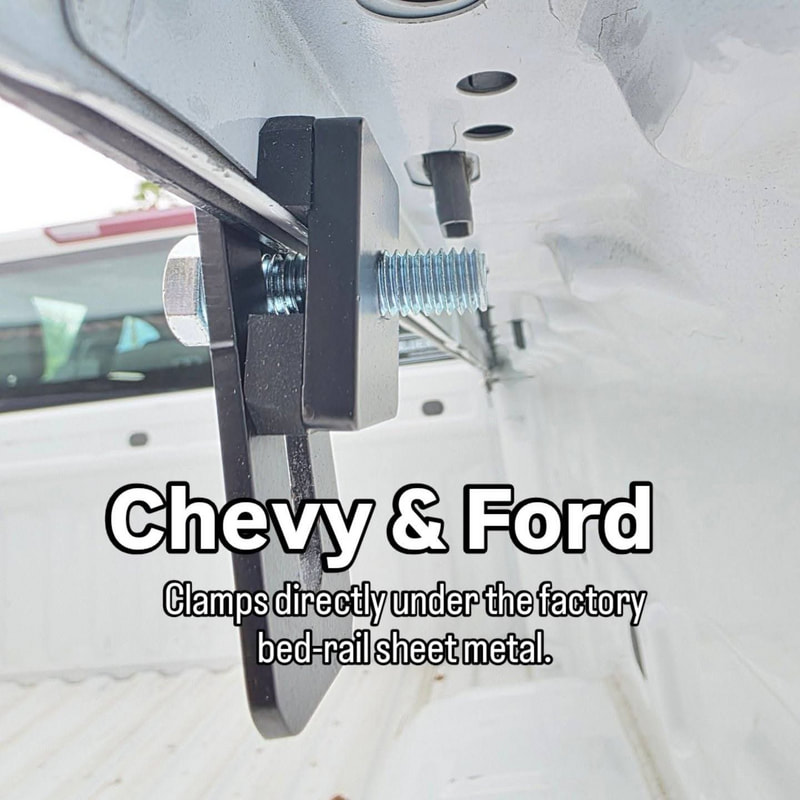

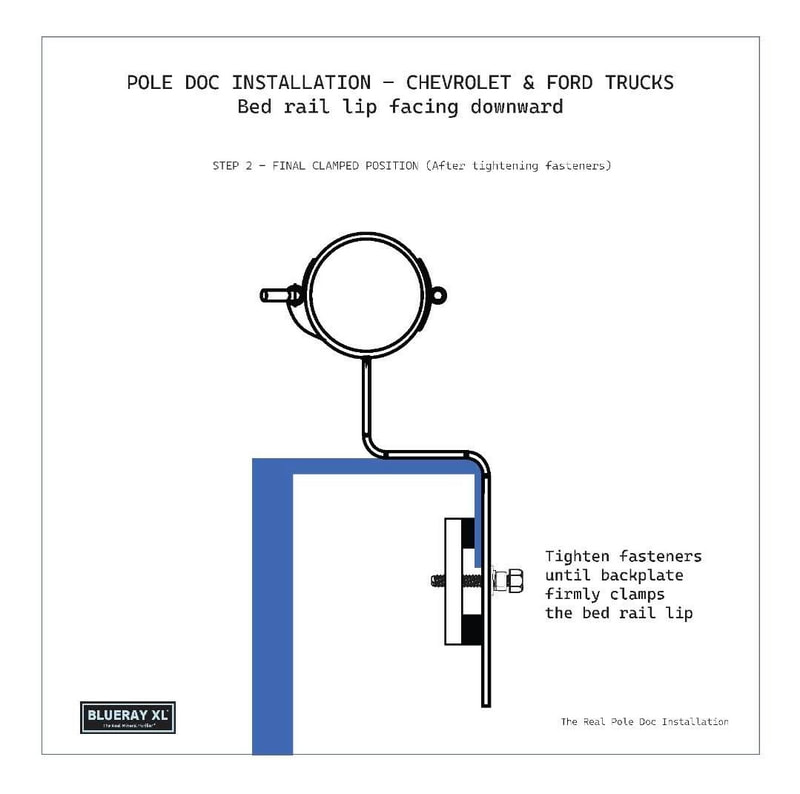

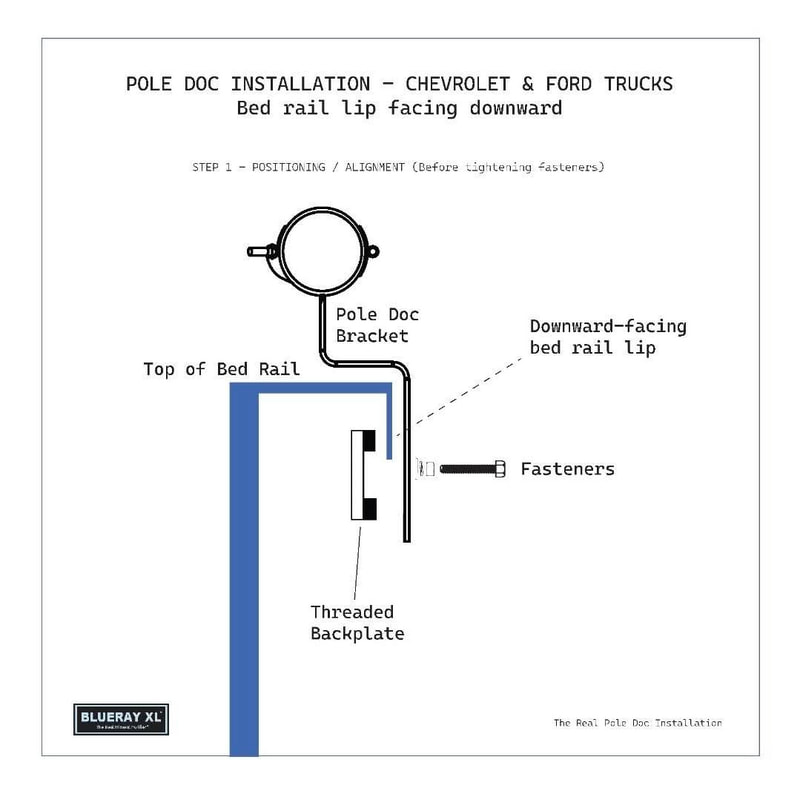

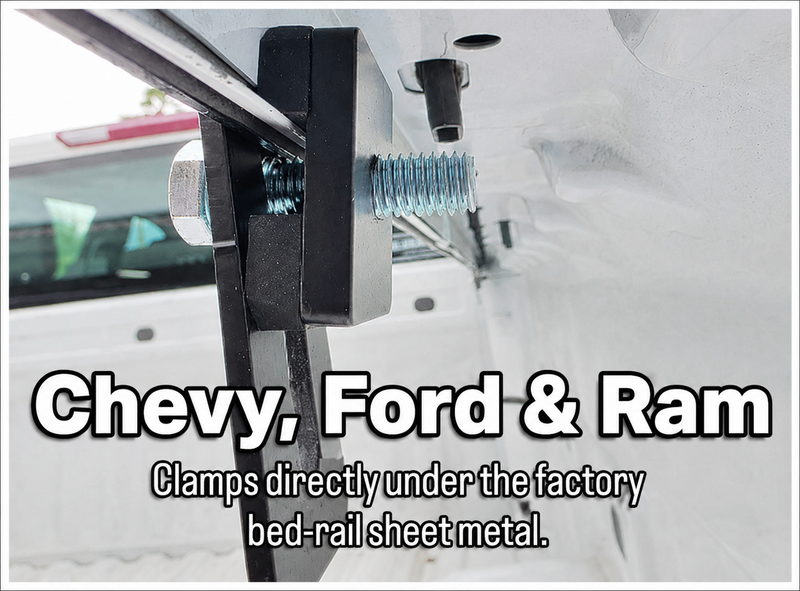

​POLE DOC™ clamps beneath the bed rail lip using the bracket and backplate configuration shown. Review the mounting area and confirm adequate lip clearance before installation.

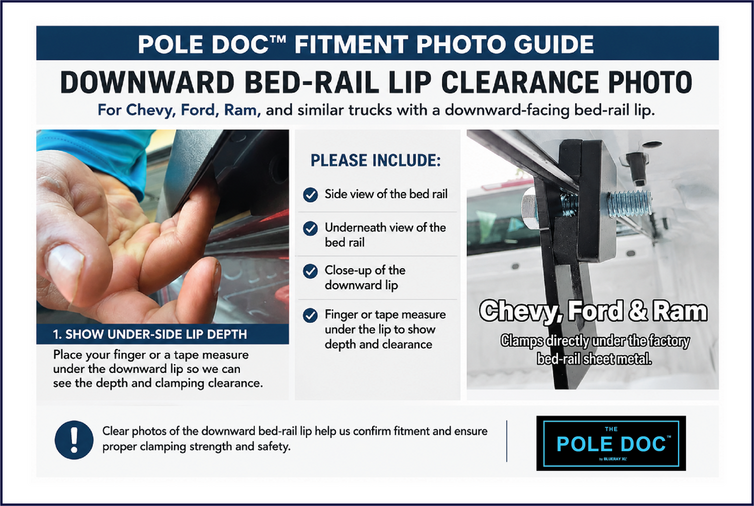

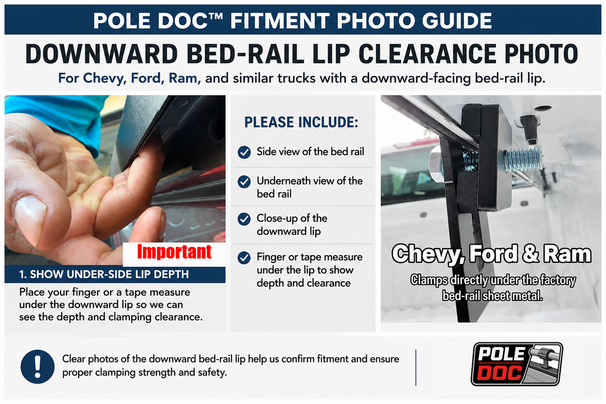

For Chevy, Ford, Ram, and similar trucks with a downward-facing bed rail lip, please send a clear underside photo showing the lip depth and clamping clearance. A finger or tape measure under the bed rail helps us review proper POLE DOC™ fitment.

---

Factory Bed Rail System Fitment Examples

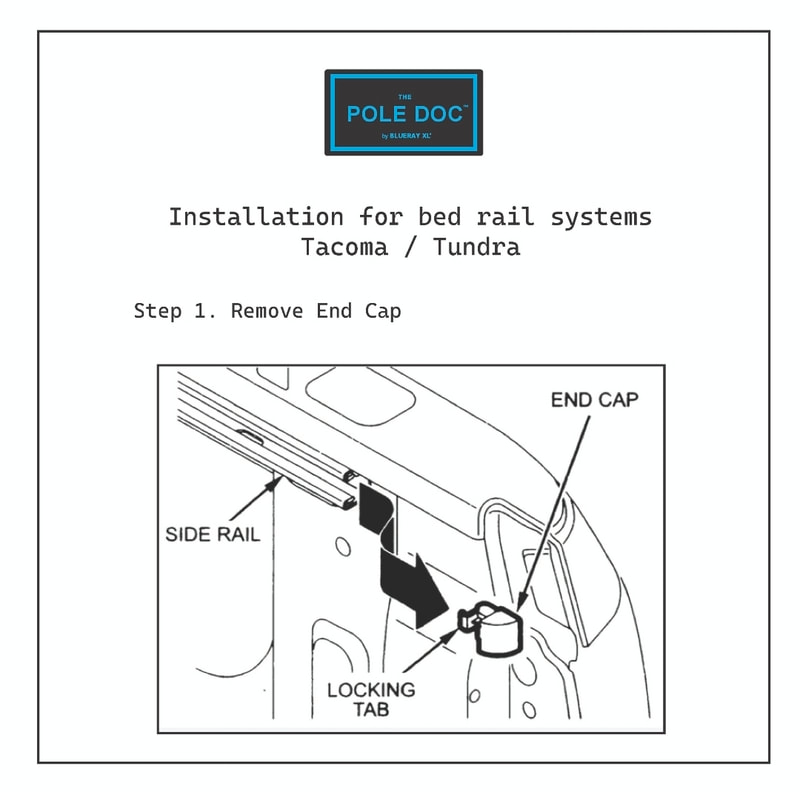

For Tacoma, Tundra, and similar factory bed rail systems.

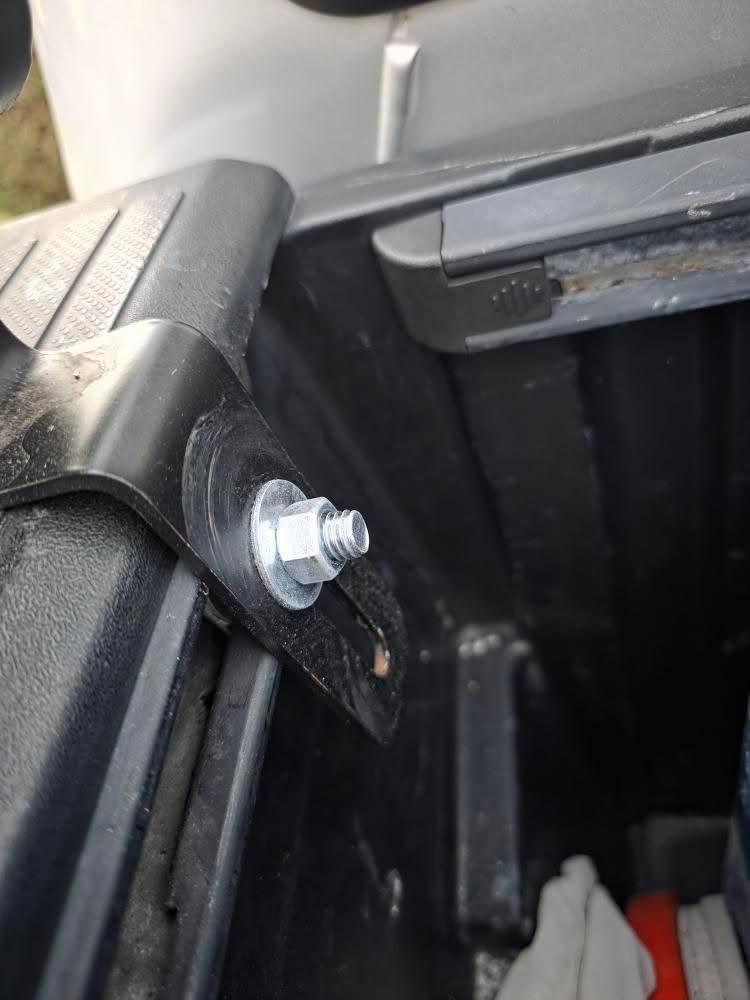

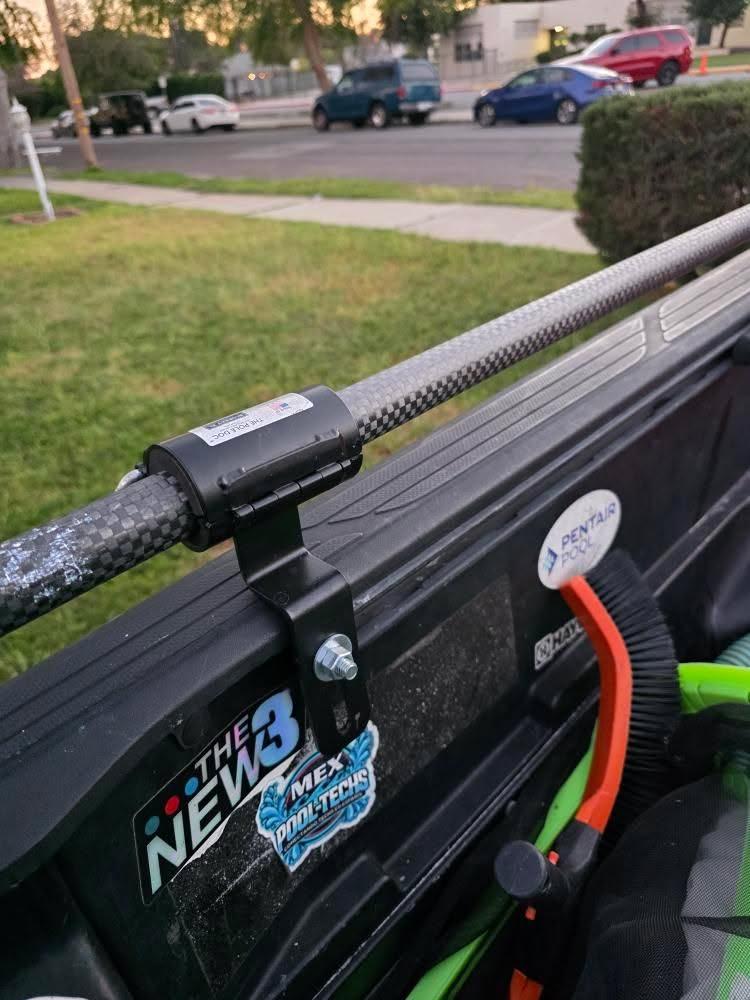

Examples shown here include Tacoma, Tundra, and similar factory bed rail systems. Please submit clear photos of the rail channel and mounting area for review.

---
